0.3W to 1.5W 1.5V series Flexible Amorphous Solar Panel DIY Charger Education solar cell Kits

Regular price $7.00

LINK SOLAR 0.3W 0.5W 0.7W 1W 1.5W 1.5V Flexible Solar Cells Amorphous Silicon Solar Panel DIY Charger Education Kits.

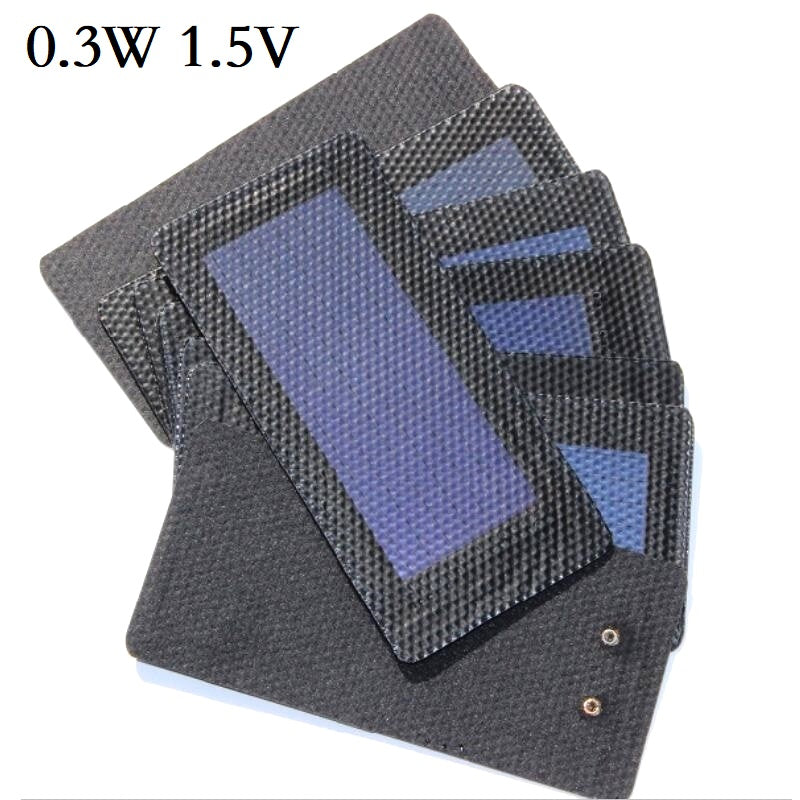

0.3 W amorphous solar cell

  • Maximum Power: 0.3 W amorphous solar cell
  • Operating voltage: 1.5 V
  • Operating Current: 0-200mA
  • Short circuit current: 220mA
  • Open circuit voltage: 2.0 V
  • Size:120*60mm
  • Weight: 10.5g About

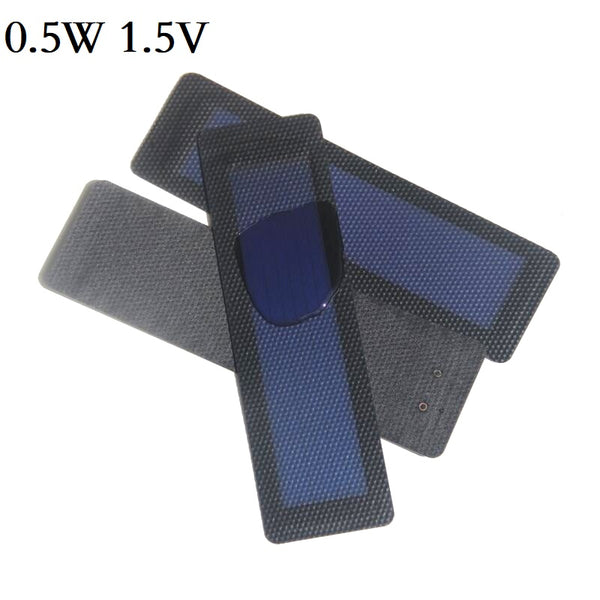

0.5W amorphous solar cell
  • Maximum Power: 0.5 W
  • Operating voltage: 1.5 V
  • Operating Current: 0-330mA
  • Short circuit current: 420mA
  • Open circuit voltage: 2.0 V
  • Size: 198 * 58 mm
  • Weight: 14g About

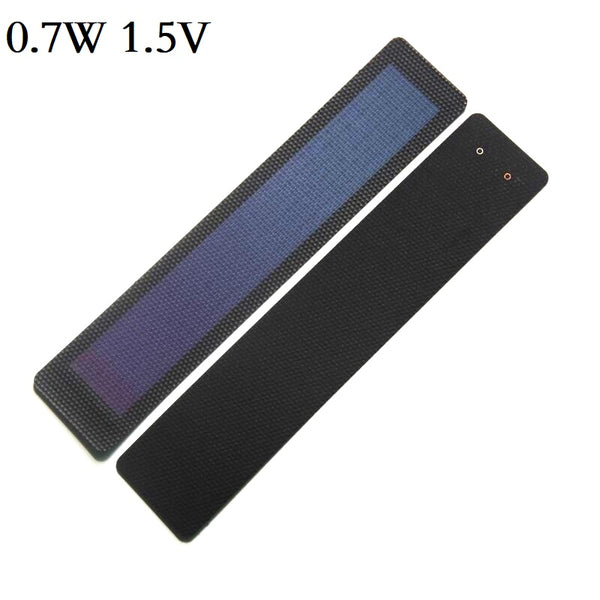

0.7W amorphous solar cell
  • Maximum Power: 0.7W
  • Operating voltage: 1.5 V
  • Operating Current: 0-465mA
  • Short circuit current: 500mA
  • Open circuit voltage: 2.0 V
  • Size: 270*550.8MM
  • Weight: 22g About

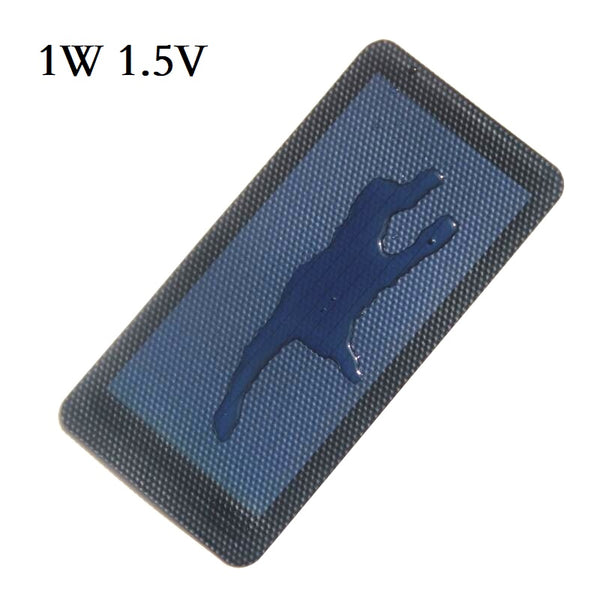

1W amorphous solar cell

  • Maximum Power: 1W
  • Operating voltage: 1.5 V
  • Operating Current: 0-660mA
  • Short circuit current: 800mA
  • Open circuit voltage: 2.0 V
  • Size: 197*97*0.8MM
  • Weight: 30g

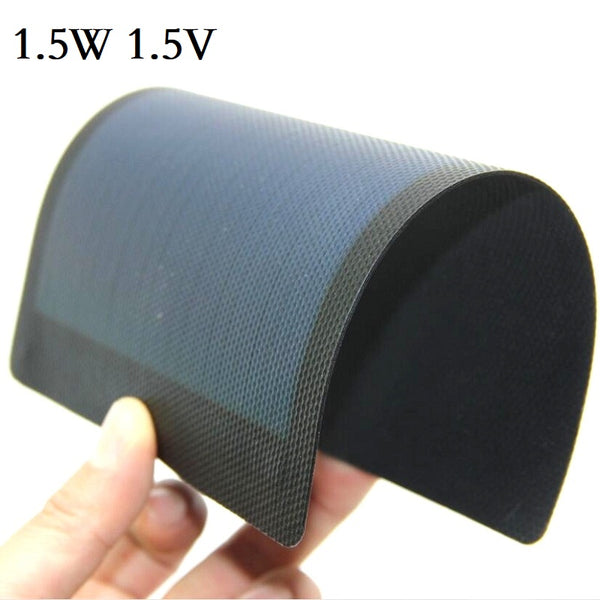

1.5W amorphous solar cell
  • Maximum power (Pmax): 1.5 W
  • Operating voltage (Vmp): 1.5 V
  • Operating Current (lmp): 0-1000mA MAX
  • Short-circuit current (Isc): 1200mA
  • Open circuit voltage (Voc): 2.0 V
  • Structural parameters:
  • Length: 190mm
  • Width:130mm
  • Thickness: about 0.8mm
  • Weight: 40g

Packaging materials: durable, high transmittance ETFE film, waterproof, UV-resistant fabric
Adhesive: weather, high transmittance fast curing EVA film
Battery Type: Flexible triple junction amorphous silicon thin film solar cells
